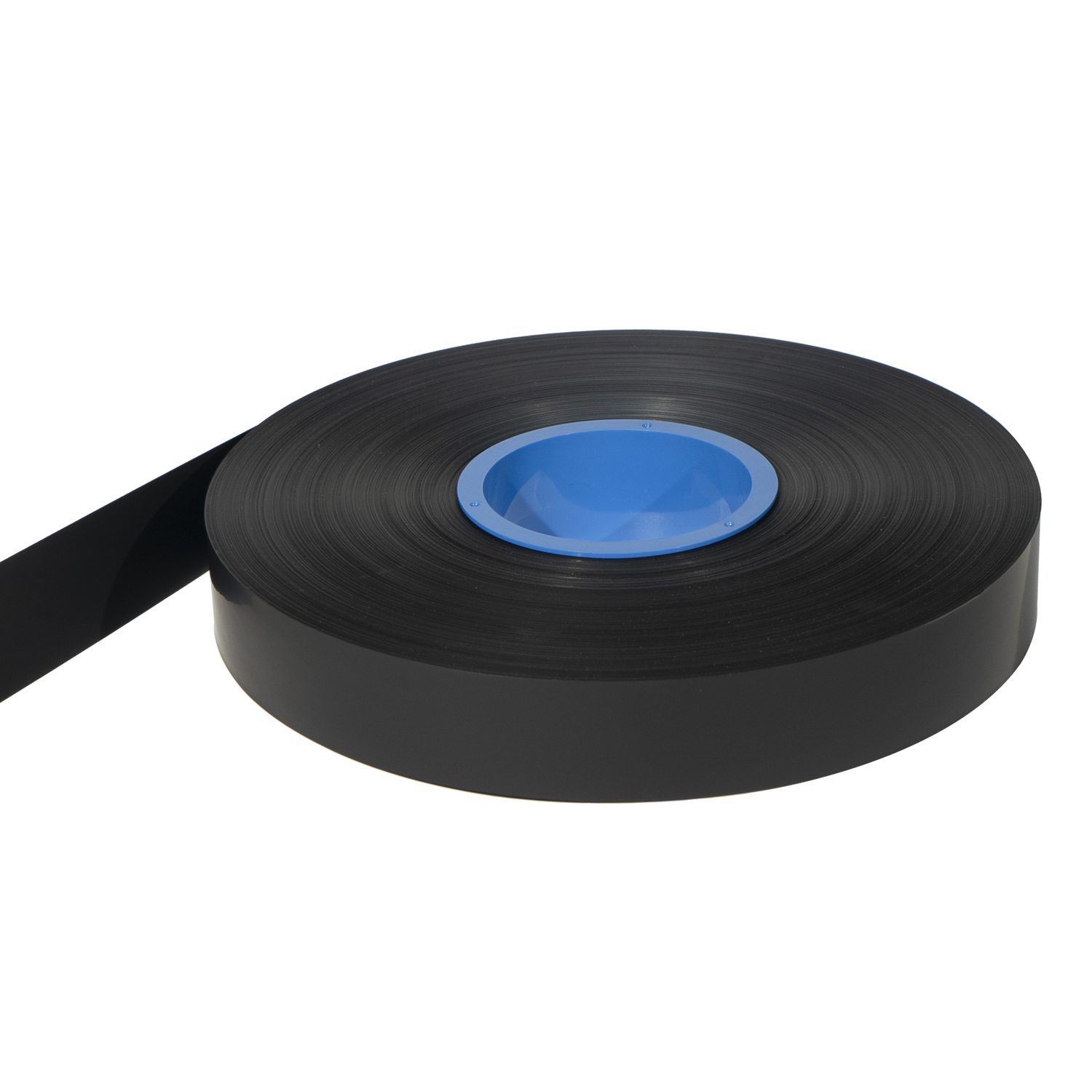

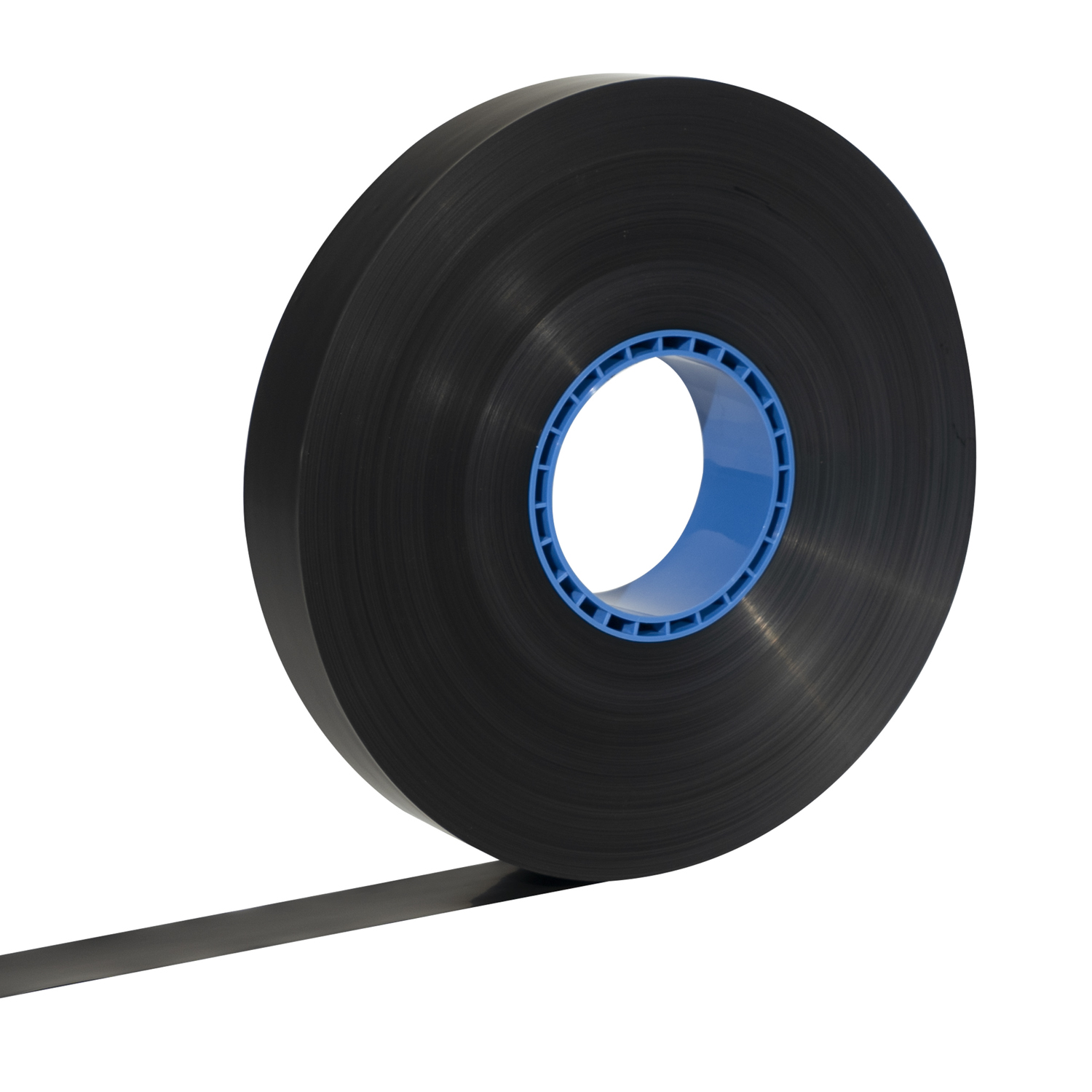

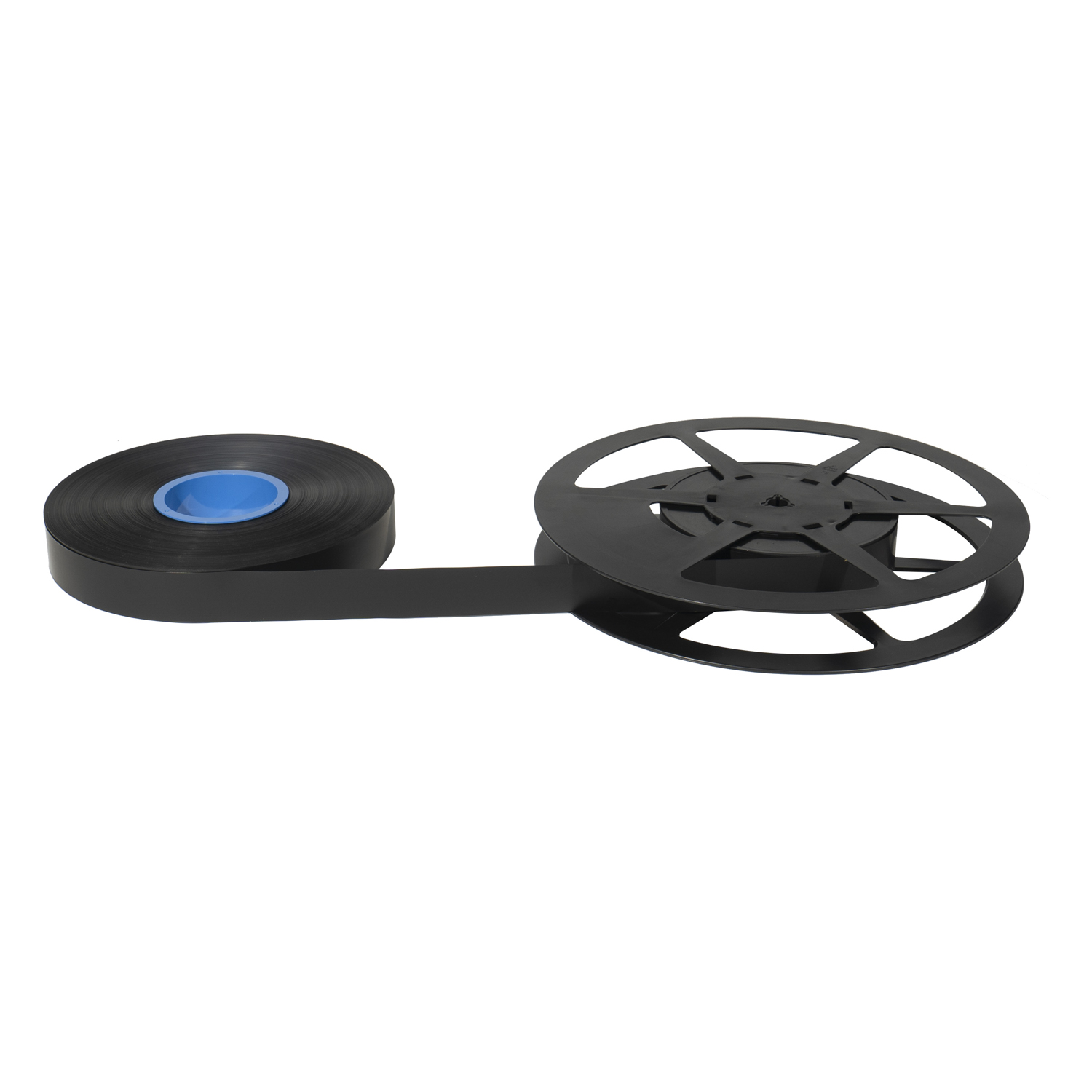

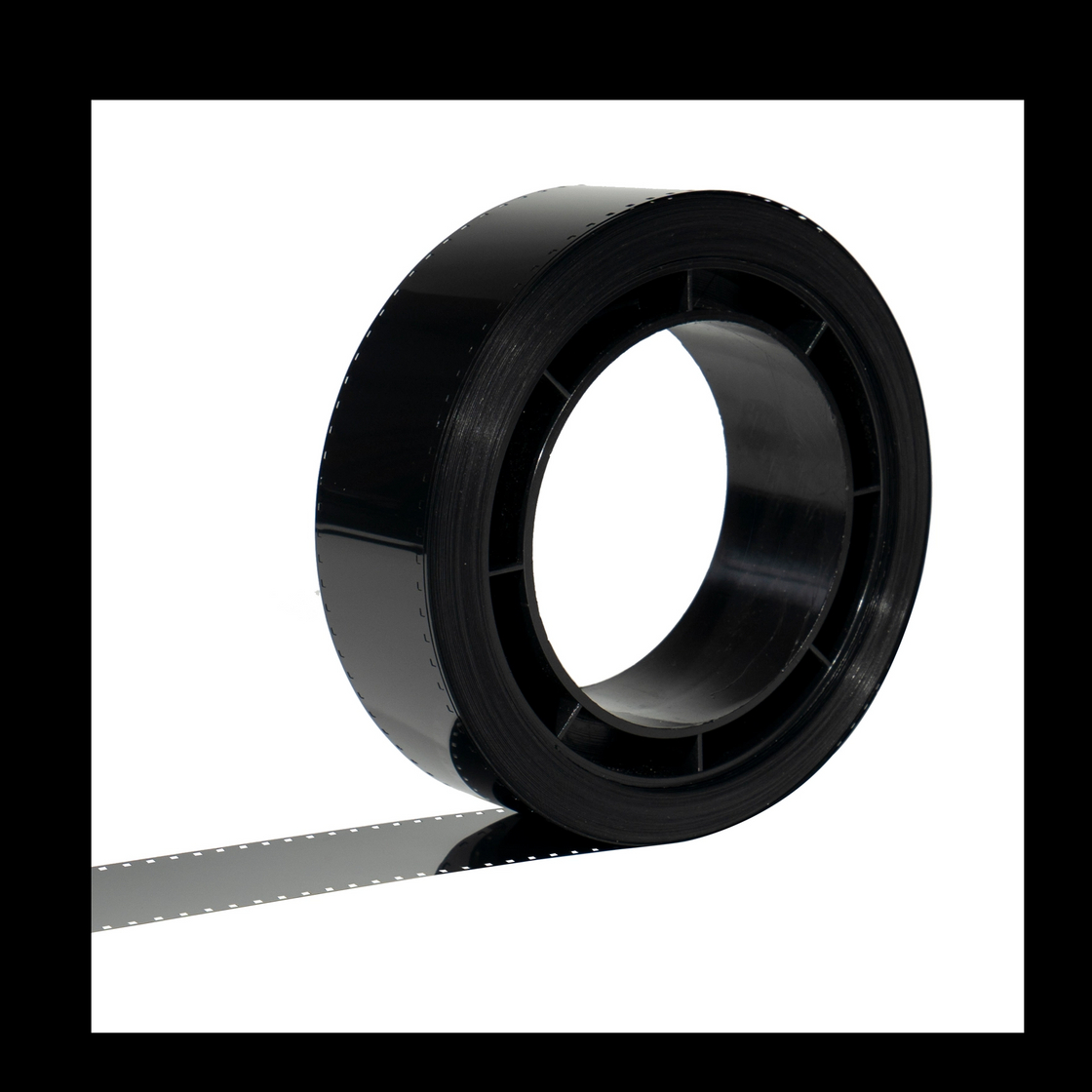

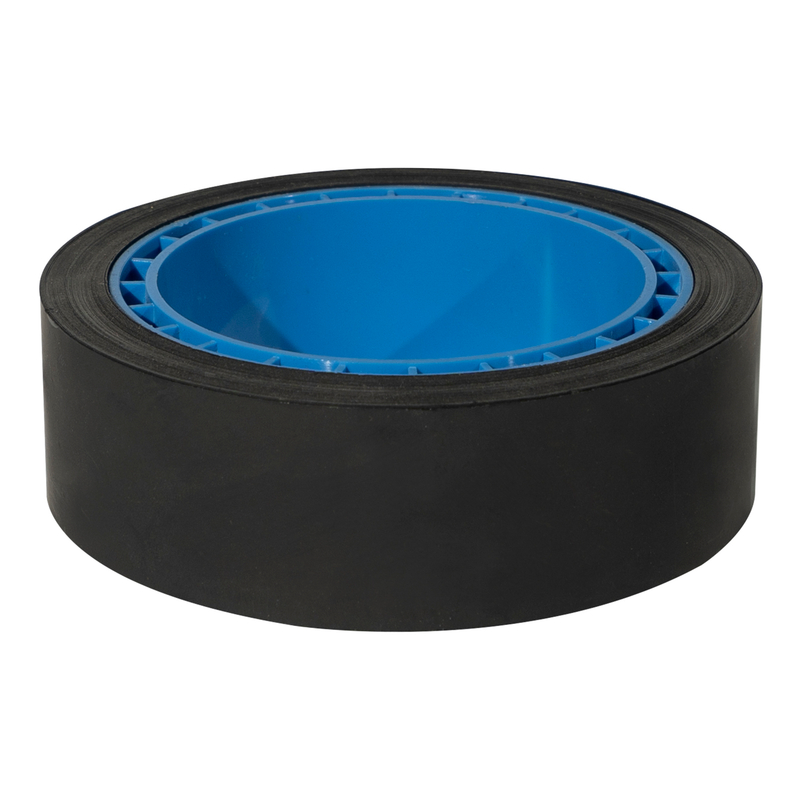

• ESD Protective Tape (Spacer Tape)
product name：
ESD Protective Tape (Spacer Tape)
product model：JH5065
Product Description:
Anti-static protective tape is also known as PE black conductive tape, black conductive roll film, roll spacer protective film, black conductive coil film tape, strip chip card separator diaphragm and so on.
This product is made of our exclusive formulation of black conductive polyethylene material, with good electrostatic discharge performance and mechanical properties, tightly wound with the protected product, no matter how long it is placed, it will not drop powder and dust, and will not form macula or other impurities on the surface of the product.
Application:
• Such products are widely used in strip chip packaging enterprises, as well as the use of such chips to make bank cards, mobile phone communications SIM card factory.
The main technical parameters:
Model | Item | General square resistance（Ω/Sq） | Thickness（μm） | Width（mm） | Length（m） | Customized |
5065D1MT90W35R200 | Anti-static protective spacer tape | 10K~1M | 90 | 35 | 200 | Yes |
5065D1MT90W35R400 | Anti-static protective spacer tape | 10K~1M | 90 | 35 | 400 | Yes |
5065D1MT75W35R200 | Anti-static protective spacer tape | 10K~1M | 75 | 35 | 200 | Yes |
5065D1MT75W35R500 | Anti-static protective spacer tape | 10K~1M | 75 | 35 | 500 | Yes |
5065D1MT75W35R1000 | Anti-static protective spacer tape | 10K~1M | 75 | 35 | 1000 | Yes |
5065D1MT50W35R500 | Anti-static protective spacer tape | 10K~1M | 50 | 35 | 500 | Yes |
